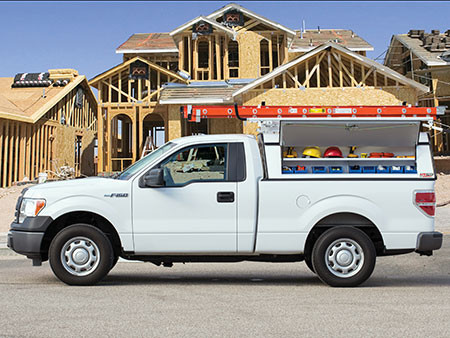

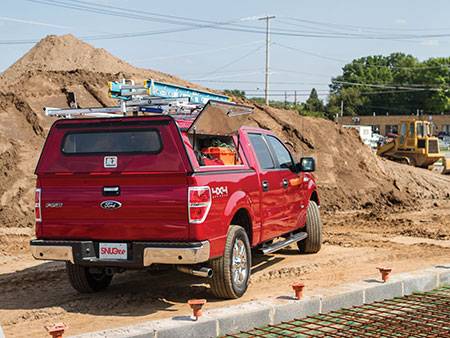

SnugTop UT Pro

Standard Features & Options
.035 Exterior Smooth Skin Aluminum Roof Metal
Full Length Side Doors with Gas Props
Stainless Steel Drop-T Handles and BOLT Locks with "One Key Technology"
Fuse Box
Interior Wire Loomed and Secured
Solid ½ Rear Lift Door with Gas Props and Contoured Door Skirt
Exterior Mounted LED Third Brake Light
Heavy Duty Aluminum Base Rails
TIG Welded "Super Case" Integrated Roof Construction
Solid Front Wall
Black Trim
SNUGTOP 5 Year Structural Warranty
Choice of Available Colors
.035 YZ White
.035 Polar White
.035 Black
.035 Dove Grey
Automotive Paint
Axalta Base Coat/Clear Coast Automative Paint
Tri-Coat Automotive Paint
Height Options
Compact Trucks
23"
26"
30"
Full Size Trucks
23"
26"
30"
Ford Super Duty Trucks
26"
30"
Wedge Options
Available heights low to high indicated
23"-26" Compact and Full Size
23"-30" Compact and Full Size
26"-30" Super Duty
UT Pro Front Options
Solid Front Wall – Standard
Rectangular Front Picture Window
Radius Front Picture Window
Rectangular Front Sliding Window
Radius Front Sliding Window
Window Security Screen
(Available for Rectangular Picture Windows Only)
UT Pro Rear Options
Solid ½ Rear Door with Stainless Steel Drop T-Handle and Bolt Lock – Standard
Rear Radius Picture Window for ½ Door

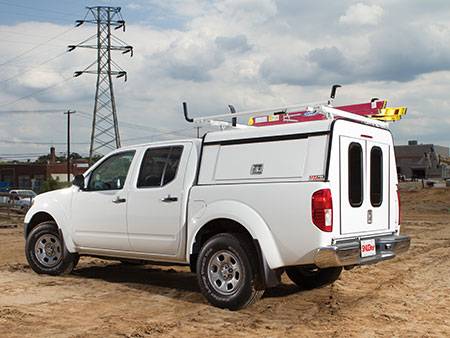

Double Full Doors Flush Mount with Stainless Drop T-Handle and BOLT Lock
Two Long Radius Windows for Full Doors
Single Full Door Flush Mount with Stainless Drop T-Handle and BOLT Lock – Left Side Hinge
Rear Radius Picture Window for Single Full Door
Hatchback Full Door Flush Mount with Stainless Drop T-Handle and BOLT Lock
Rear Radius Picture Window for Hatchback Full Door
Window Security Screen
Metal Skin Interior of Rear ½ Door
Metal Skin Full Interior Height of Rear Double Doors
Metal Skin Full Interior Height of Single Full Door
Metal Skin Full Interior Height Hatchback Door
Exterior Mounted LED Third Brake Light – Standard
BOLT Lock deduct to Strattec Automotive Lock Core
Additional Options
Side Door Options
Full Length Side Door Each Side with Stainless Steel Drop T-Handle and Bolt Lock-Standard
Delete Standard Side Door
Side Door Metal Skin Interior
Double 40” Side Doors with Stainless Steel Drop T-Handle and BOLT Lock (8’ units only)
Side Door 66” with Stainless Steel Drop T-Handle and Bolt Lock (8’ units only)
Side Door Windows
Radius Side Windoor 72 x 14 or Smaller (Dark tint glass)
Radius Side Sliding Window
Window Security Screen
BOLT Lock deduct to Strattec Automotive Lock Core
Full Side Wall Metal Skin Interior
Took Box Options
Tool Box 66” L x 16” H x 12” D - Full Size Short Bed
Tool Box 82” L x 16” H x 12” D - Full Size Long Bed
Rubberized Non-Slip Mat for Tool Box Floor
Storage Solutions – Parts Bins and Shelf Bins
Tool Box Shelf/Divider Options
Includes Powder Coated (White) Metal Tool Box, Shelf, or Divider (See chart)
Tri-Coat Automotive Paint
Interior Lighting /Power Options
12 Volt LED Light Bar – 20”
12 Volt LED Light Bar – 40”
12V Dome Light Gas Prop Switch – Dome Light Purchase Required (Switch is available for all DCC doors)
12V Three Outlet Power Block
Interior LED Bar Light Options
Includes Lights and Wiring (Loomed in location as displayed to the standard fuse box) (See chart)
Interior Options
Interior Headliner – Roof Sheet Only
Interior Headliner – Complete Unit Side Doors Excluded
Metal Skin Interior - Solid Front Wall Only, Roof Only, or Solid Front Wall and Roof
Interior Roof Rack 5 ½”D x 16”W Each
Interior Roof Rack 8 ½”D x 16”W Each
Exterior Rack Options
(Note: All UT PRO factory installations of Thule®, CapRac, and Prime Design™ require the boltplate reinforcement option)
Welded Aluminum Ladder Rack – Six Position Mounting
Boltplate Reinforcement for Aftermarket Rack Systems
Thule®- Tracker ll Roof Rack System with Locks
CapRac - Commercial Rack System (2-Bar Set with Load Stops)
Kargo Master Pro lll Cap Mount Rack System
Prime Design Ladder Racks
AluRack™ Ladder Rack
ErgoRack™ Single Clamping Ladder Rack
ErgroRack™ Double Clamping Ladder Rack
ErgoRack™ Single Clamping/Single Rotation Ladder Rack
ErgoRack™ Dual Rotation Ladder Rack
Prime Design Ladder Rack Accessories
AluRack™ Quick Clamp Option - DS or PS
ErgoRack™ Quick Clamp Option
ErgoRack™ "Go" Beacon Light Mounting Bracket
ErgoRack™ "Strobe" Beacon Light Mounting Bracket
ErgoRack™ Conduit Tube 5" X 10'
ErgoRack™ "Strobe" Beacon Light Mounting Bracket for Conduit Tube
Truck Bed Accessories
BEDRUG Bedliner
Prime Design™ and Kargo Master racks not available for install on Wedge built commercial Aluminum Units.
